Linux |
This article applies to the Linux operating system (x64), the Linux operating system (aarch64), and Linux Operating system (loongarch64).
Under the Linux operating system, both file and hardware licenses are supported, but drivers must be installed and all license verifications are communicated through drivers.
Finish the following process performing as root: Extract the driver installation package *. tar and install the driver program in the directory of supermap_iserver_*_linux64/support/SuperMap_License/Support;
The unzip command is as follows:
tar -xvf *.tar
Enter the extracted file and execute the following command to install the driver:
./dinst
Or
sh dinst
After installing the driver, you can obtain a 90 day trial license to use the SuperMap GIS series products. If dinst does not have executable permission, grant execute permission and execute the following command:
chmod +x dinst
Please note: If you have installed the license driver in the iServer package earlier than 11.2.0 version on your system, when using a higher version of iServer, you also need to follow the above steps to reinstall it to update the license driver to the higher version, otherwise some functions in the iServer will be used abnormally.
The file license configuration mode currently provided by SuperMap License Center is software activation, which is different from the interface configuration under Windows operating system. Under the Linux operating system, the file license configuration is completed by using the ./licensetool.sh command.
Enter the root directory of the package and execute the following command to view the relevant commands permitted by the config file:
./licensetool.sh
Enter the root directory of the package, and use the "Software Activation" method to configure the license. The steps are as follows:
(1) Obtain the local information, execute the following command, specify the path where the generated local information file is stored, and generate *.report under the specified path Paper.
./licensetool.sh -report /pathname/*.report
(2) Submit local information to SuperMap Software Co., Ltd.
Submit the local information file (*.report) generated in the above steps to SuperMap Software Co., Ltd. We will generate an official license file based on your application and return it to you. You can configure the official license through this file.
(3) When the license takes effect, specify the formal license file you obtained to the file location, and execute the following command:
./licensetool.sh -update /pathname/*.lic9d
Or
./licensetool.sh -update /pathname/*.licx
Or
./licensetool.sh -update /pathname/*.lic12
Before configuring your license, please ensure that you have obtained authorization from SuperMap Software Co., Ltd. If a license server has already been configured within the same network segment, the license will be automatically configured without the need for manual configuration; If there are available hardware lock licenses in the current network environment (other network segments), please follow the steps below to configure the licenses:
(1) Open the browser and access the http://localhost:1947 or http://local IP:1947.
(2) Select Configuration in Options on the left.
(3) Select the Access to Remote License Managers tab on the right.
(4) Fill in the license server IP of other network segments in Specify Search Parameters, and click Submit.
(5) After a few minutes, you can see the encryption lock of the server under the Sentinel Keys option in the Options on the left.
The license status query can also be viewed by executing the following command in the root directory of the supermap_iserver_*_linux64:
./licensetool.sh -s
(1) Generate operation report
Execute the following command in the root directory of the package and specify the storage path for running the report:
./licensetool.sh -report /pathname/*.report
After the command is run, the *.report file is generated at the specified path.
(2) Apply for trial license
You can directly apply for a trial license in the "SuperMap Technical Resource Center" on the official website of SuperMap Software Co., Ltd. After application, you will receive:
(3) Trial license takes effect
Enter the root directory of the supermap_iserver_*_linux64, specify the trial license file you obtained to the file location, and execute the following command:
./licensetool.sh -update /pathname/*.lic9d
Or
./licensetool.sh -update /pathname/*.licx
Or
./licensetool.sh -update /pathname/*.lic12
License management allows you to view license status, update licenses, and so on.
The query of license status can be viewed by executing the following command in the root directory of the product:
./licensetool.sh -s

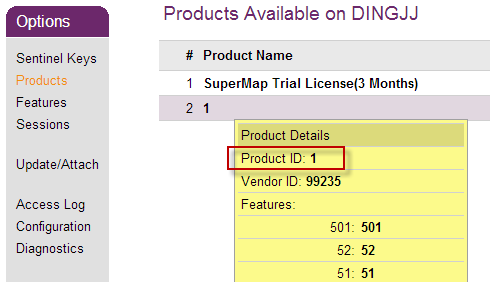

The license status information is product ID, module ID, product name, license type (including formal version and trial version), number of licenses, and license expiration time.
Please specify the official license file you have obtained to the file location and execute the following command:
./licensetool.sh -update /pathname/*.lic9d
Or
./licensetool.sh -update /pathname/*.licx
Or
./licensetool.sh -update /pathname/*.lic12
License updates can accept the following files for different purposes:
